Roots Steam Compressor for Mechanical Vapor Recompression (MVR): Why Roots MVR Steam Compressor Beats Centrifugal in Crystallization, High-BPE and Mid-Small Evaporation
In a Mechanical Vapor Recompression (MVR) evaporator, the MVR steam compressor is the component that decides whether the closed loop saves 60–90% of boiler steam or stalls on surge, erosion and fouling . For Mechanical Vapor Compression duties with high boiling point elevation (BPE), forced-circulation crystallization, scaling brine or unstable wastewater feed, a Roots steam compressor—a positive-displacement lobe compressor built for saturated vapor—is often the only machine that keeps the plant running without a multi-stage centrifugal compressor.
This page is written for process engineers, EPC buyers and plant managers specifying MVR steam compressors: it explains where Roots-type compression is necessary, how it compares with centrifugal compressors, and what data to send for a quoted package.
How Mechanical Vapor Recompression (MVR) uses the compressor
Evaporator secondary steam (typically 60–100℃, low pressure) is drawn into the MVR steam compressor, compressed, and returned to the heating tubes at a higher saturation temperature . The compressor turns electricity into enthalpy; everything else in the loop is heat exchange.
- Centrifugal MVR compressor – dynamic impeller, 10k–30k rpm, large flow, low/medium single-stage lift, surge-limited .

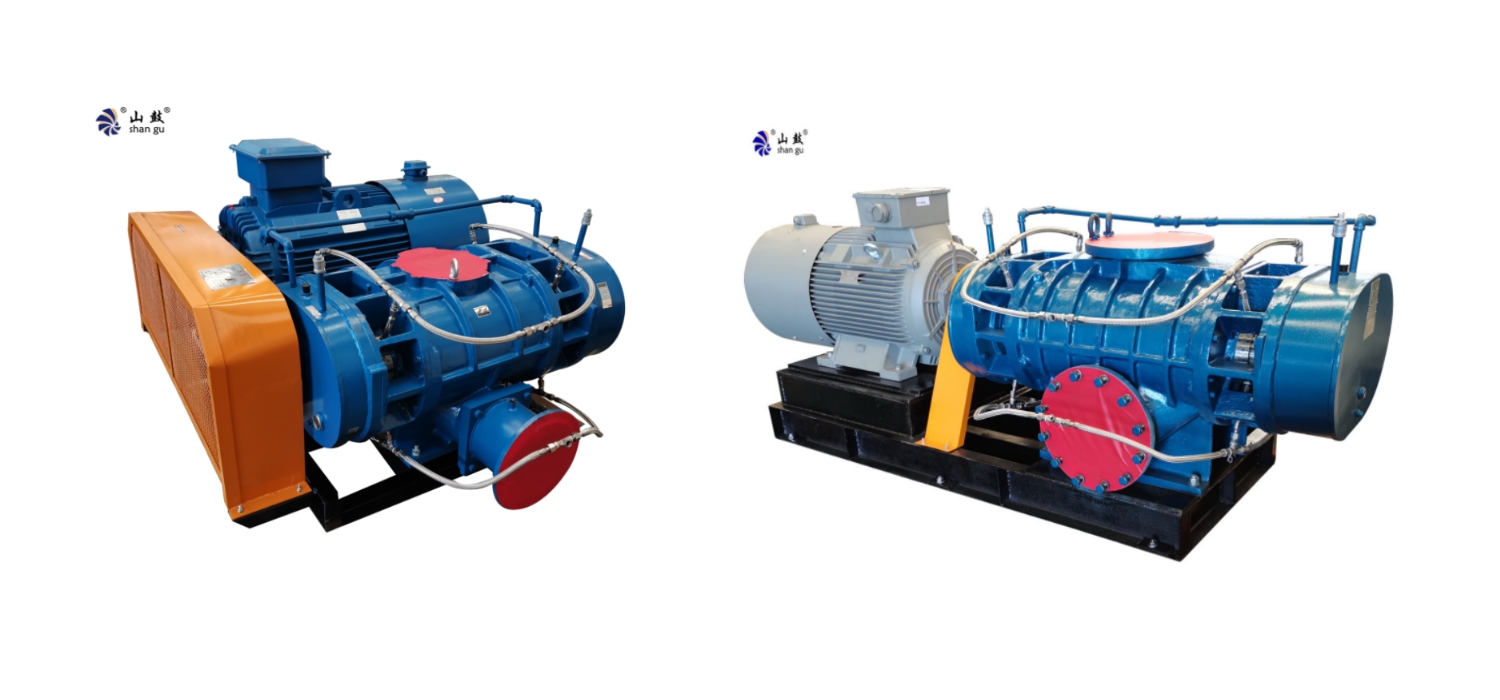

- Roots MVR steam compressor – twin lobe rotors, positive displacement, non-contact, high single-stage pressure ratio, flat curve .
For dirty, scaling, high-BPE or 0.5–15 t/h evaporation loops, positive displacement removes the biggest failure modes of dynamic compressors .
6 reasons Roots steam compressors are necessary in many Mechanical Vapor Recompression (MVR) evaporators
1. Single-stage 10–25℃ lift covers high BPE materials in Mechanical Vapor Recompression (MVR)
High-salt, sulfate, chloride and lithium brines often need >8–10℃ BPE plus line losses. Centrifugal units give 5–12℃/stage and force multi-stage stacks . A Roots steam compressor runs 1.5–4.0 pressure ratio, 10–20℃ single-stage saturation lift, so one casing covers most crystallizing MVR duties .
→ Without Roots displacement, high-BPE liquor either drops out of single-loop MVR or pays centrifugal staging CAPEX.
2. No surge — survives feed/concentration/back-pressure swings in Mechanical Vapor Recompression (MVR)
Centrifugal compressors ride a steep head-flow curve and surge when evaporation rate or back pressure drifts . Roots blowers are volume-dominated: displaced vapor stays near-constant across discharge pressure, so batch feed, concentration drift and fouling will not trip them .
→ For wastewater / mother-liquor streams that never sit at nameplate, Roots MVR steam compressors cut unplanned downtime.
3. Wet vapor & mist tolerated in forced-circulation crystallizers
Crystallizer secondary steam carries droplets; centrifugal wheels erode and lose balance . Roots rotors turn slower, clearances are non-contact, and the compression chamber is oil-free, so light carry-over will not immediately disable the machine .
→ Looser demister spec, fewer rotor rebuilds, longer run before CIP.
4. Right-sized CAPEX for 0.5–15 t/h MVR evaporators
Roots units span ~30 kg/h–3.0 t/h in standard product lines, up to ~15 t/h in engineered packages; no high-speed gearbox . Centrifugal pays off at larger flows where kWh/ton wins .
→ Pharma, fine-chem, ZLD brine, dairy and pilot lines get MVR ROI without turbo-compressor overhead.
5. Back-pressure follows scaling — keeps ΔT as tubes foul
Scaling raises system back pressure; centrifugal head collapses off-curve, Roots displacement simply pushes to the new pressure .
→ Longer online campaign between washouts, steadier crystal yield.
6. Field-serviceable, VFD-ready, oil-free chamber
Wear items are seals/bearings/sync gears, not impellers; VFD scales displacement; internal oil separation keeps steam hydrocarbon-free .
→ Lower lifecycle O&M than high-speed centrifugal MVR, no turbine specialist on retainer.
Roots vs Centrifugal MVR steam compressor — selection table
| Parameter | Roots steam compressor (positive displacement) | Centrifugal MVR compressor (dynamic) |
|---|---|---|
| Evaporation fit | 0.5–3.0 t/h (product lines to ~7.4 t/h) | 10–200+ t/h |
| Single-stage ΔT | 10–20℃ | 5–12℃ (multi-stage for more) |
| Pressure ratio | 1.5–4.0 | 1.1–2.2 |
| Surge | None | Yes, off-design |
| Wet / crystallizing vapor | Tolerated | Impeller erosion risk |
| CAPEX profile | Lower at small–mid scale, no gearbox | Higher precision train |
| Best duty | High BPE, crystallization, variable feed, ZLD | Steady large clean-flow falling film |
Where Roots MVR compressor is the correct spec
Specify a Roots-type Mechanical Vapor Compression compressor when the brief shows:
- evaporation ≤ 8–15 t/h
- BPE / required ΔT > 8–10℃
- forced-circulation or crystallizing liquor
- feed concentration / flow varies shift-to-shift
- mist carry-over cannot be 100% removed
- CAPEX envelope rules out geared centrifugal
- site lacks high-speed turbomachinery mechanics
FAQ
Q: What is a Roots steam compressor in Mechanical Vapor Recompression (MVR)?
A positive-displacement lobe blower adapted for saturated vapor; it traps and displaces steam against back pressure to lift saturation temperature 10–20℃ per stage without surge .
Q: Is Roots or centrifugal better for MVR crystallizers?
For crystallizing, high-BPE or misty vapor below ~15 t/h, Roots is preferable—centrifugal impellers erode and surge off-design .
Q: Can a Roots MVR compressor handle scaling brine?
Yes; displacement outlet tracks rising back pressure, so it holds temperature lift as exchanger tubes foul .
Get a quoted Roots MVR steam compressor package
Send these and we return sized Roots vs centrifugal curves + CAPEX/OPEX:
- evaporation rate (kg/h or t/h) and inlet/outlet saturation
- Inlet temperature and outlet temperature
We engineer duplex-SS / titanium rotors, mechanical + labyrinth seals, water-injection cooling and skidded packages for Mechanical Vapor Recompression (MVR) Compressor.
