Backwash Roots Blower for Water Filter Cleaning: Why a Positive Displacement Blower Beats Centrifugal Fans

In municipal water plants, industrial process-water systems, and wastewater treatment facilities, granular media filters—quartz sand, anthracite, activated carbon—are the last line of defense against suspended solids. Over time, captured particulate matter builds up inside the filter bed, head loss surges, and filtrate quality degrades. The proven cure is periodic filter backwashing, and at the heart of every efficient air-water backwash lies a backwash roots blower.

If you are specifying equipment for a new filtration line—or replacing a failing blower on an existing one—this guide explains why a positive displacement blower​ is the engineering-correct choice, how a roots blower compressor​ works in the backwash cycle, and where to find trustworthy service roots blower​ support worldwide.

---

What Is Filter Backwashing and Why Is Air Critical?

Backwashing reverses the flow of water through the filter media to dislodge and flush away accumulated impurities. While water alone can rinse loose particles, it frequently fails to clean deep media layers, leading to mud-ball formation and media caking.

That’s where air comes in.

Introducing compressed air from a backwash roots blower​ beneath the filter underdrain creates a violent bubble effect. As bubbles expand upward, sand and anthracite grains collide and abrade against each other. This mechanical rubbing action​ breaks the physical bonds between sticky flocs and the media surface—making the subsequent water flush dramatically more efficient.

💡 Plants that add an air-scour phase using a positive displacement blower​ typically cut total backwash water consumption by 30–50%, significantly reducing operating cost and wastewater discharge volume.

---

Why Choose a Positive Displacement Blower for Backwash?

During the initial air-scour cycle, the blower must push air through a submerged underdrain against varying water depth and dense media resistance.

Centrifugal fans suffer severe flow fluctuations under these changing conditions, risking uneven air distribution​ and dead spots in the bed. A positive displacement blower, by contrast, delivers a constant volumetric airflow regardless of backpressure​ variation.

Key advantages:

• Constant airflow​ against variable water head — uniform bed agitation, no “boiling” or media displacement
• 100% oil-free compression​ — dual-lip labyrinth seals keep lubricating oil away from the airstream, protecting sensitive activated carbon and downstream RO membranes from hydrocarbon contamination
• Heavy-duty tri-lobe rotors​ — low pulsation protects delicate filter underdrain nozzles from fatigue failure
• Compact, modular design​ — integrates into existing filtration systems without major modification

---

How a Roots Blower Compressor Works in the Backwash Cycle

A roots blower compressor​ is a rotary lobe, positive displacement machine. Two synchronized, non-contacting three-lobe rotors rotate inside a cylinder, trapping a fixed volume of air at the inlet, carrying it around the casing, and discharging it at system pressure.

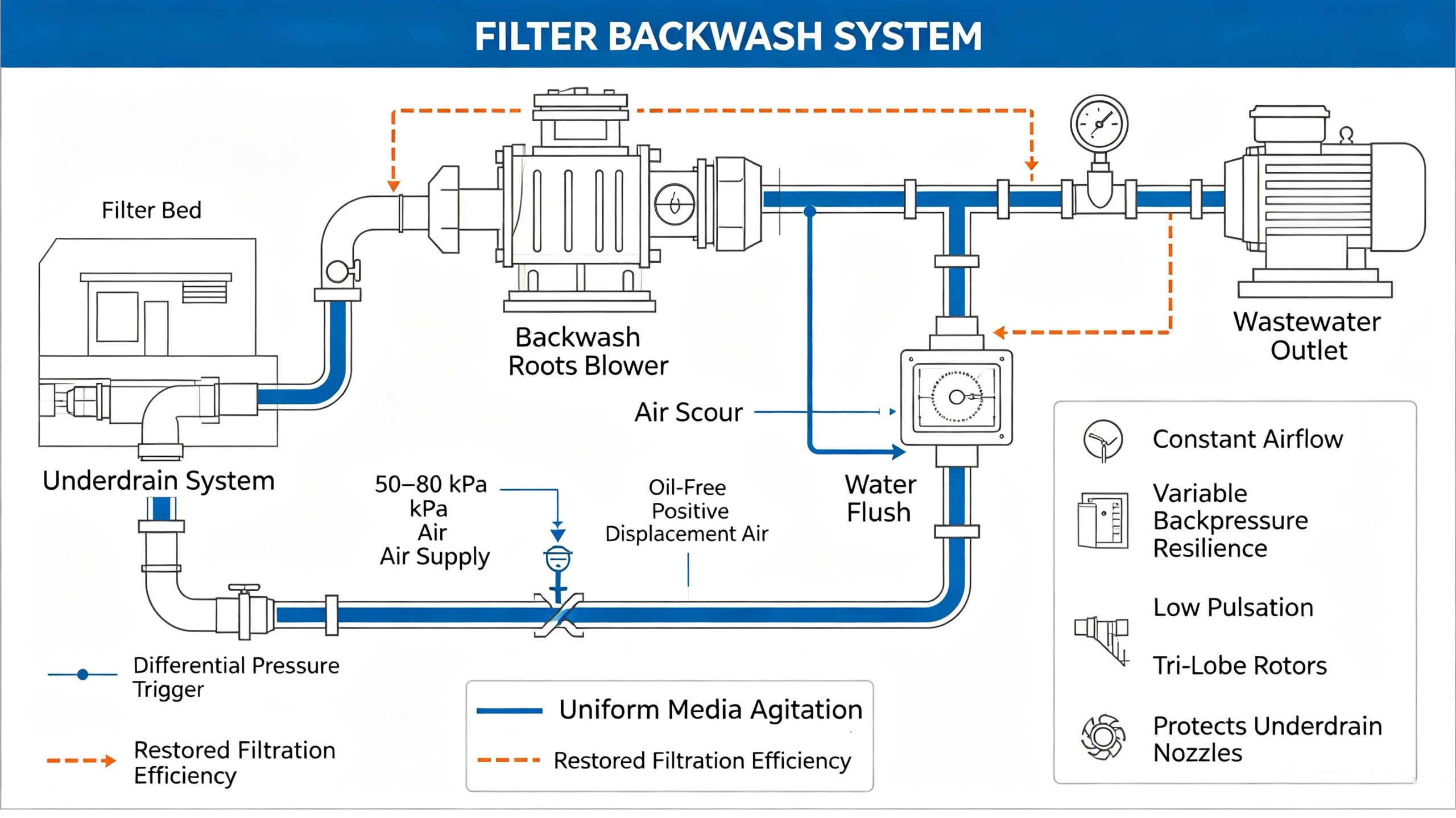

In a typical filter backwash sequence:

1. Differential pressure alarm​ triggers the backwash mode
2. The backwash roots blower​ supplies high-pressure airflow (typically 50–80 kPa) in reverse through the filter bed
3. Bubbles violently agitate the media — pollutants are stripped and released
4. A low-pressure water flush removes loosened debris from the filter
5. The filter is restored to its original permeability and filtration efficiency

This air-water backwash combination is today the most widely adopted​ backwash method in modern water treatment, surpassing simple water-only or surface-flush approaches.

---

Application Scenarios for Backwash Roots Blower

Application	Role of the Roots Blower
Municipal drinking water​ sand & anthracite filters	Air scouring to dislodge deep-seated particulates
Activated carbon (GAC) filters​	Oil-free air protects adsorption capacity
Wastewater treatment​ — MBR membrane cleaning	Prevents membrane pore clogging
Industrial process water​ (power station cooling, chemical processing)	Restores filtration capacity, extends media life
Food, beverage, pharma​ filtration	Maintains product purity and avoids contamination risk
